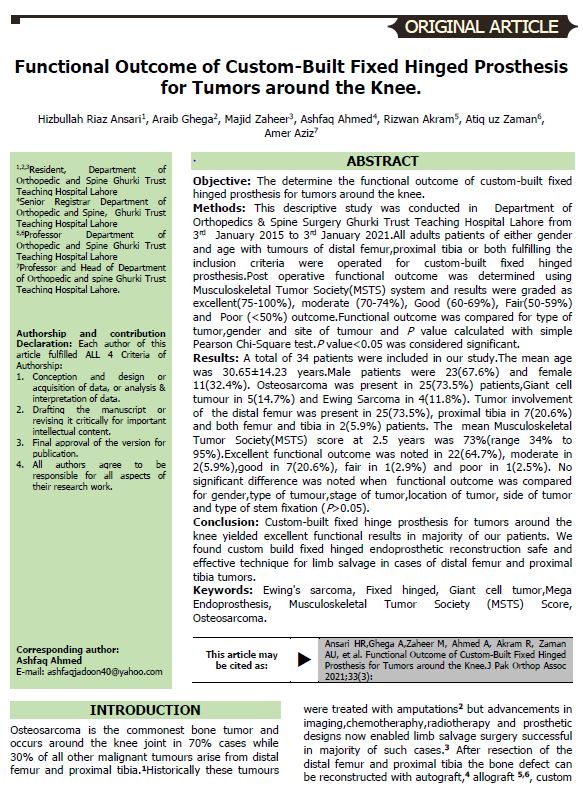

Functional Outcome of Custom-Built Fixed Hinged Prosthesis for Tumors around the Knee.


  • Hizbullah Riaz Ansari Resident, Department of Orthopedic and Spine Ghurki Trust Teaching Hospital Lahore
  • Araib Ghega Resident, Department of Orthopedic and Spine Ghurki Trust Teaching Hospital Lahore
  • Majid Zaheer Resident, Department of Orthopedic and Spine Ghurki Trust Teaching Hospital Lahore
  • Ashfaq Ahmed Senior Registrar Department of Orthopedic and Spine, Ghurki Trust Teaching Hospital Lahore
  • Rizwan Akram Professor Department of Orthopedic and Spine Ghurki Trust Teaching Hospital Lahore
  • Atiq uz Zaman Professor Department of Orthopedic and Spine Ghurki Trust Teaching Hospital Lahore
  • Amer Aziz Professor and Head of Department of Orthopedic and spine Ghurki Trust Teaching Hospital Lahore.


Ewing's sarcoma, Fixed hinged, Giant cell tumor,Mega Endoprosthesis, Musculoskeletal Tumor Society (MSTS) Score, Osteosarcoma.


Objective: The determine the functional outcome of custom-built fixed hinged prosthesis for tumors around the knee.

Methods: This descriptive study was conducted in  Department of Orthopedics & Spine Surgery Ghurki Trust Teaching Hospital Lahore from 3rd  January 2015 to 3rd January 2021.All adults patients of either gender and age with tumours of distal femur,proximal tibia or both fulfilling the inclusion criteria were operated for custom-built fixed hinged prosthesis.Post operative functional outcome was determined using Musculoskeletal Tumor Society(MSTS) system and results were graded as excellent(75-100%), moderate (70-74%), Good (60-69%), Fair(50-59%) and  Poor (<50%) outcome.Functional outcome was compared for type of tumor,gender and site of tumour and P value calculated with simple Pearson Chi-Square test.P value<0.05 was considered significant.

Results: A total of 34 patients were included in our study.The mean age was 30.65±14.23 years.Male patients were 23(67.6%) and female 11(32.4%). Osteosarcoma was present in 25(73.5%) patients,Giant cell tumour in 5(14.7%) and Ewing Sarcoma in 4(11.8%). Tumor involvement of  the distal femur was present in 25(73.5%), proximal tibia in 7(20.6%) and both femur and tibia in 2(5.9%) patients. The  mean Musculoskeletal Tumor Society(MSTS) score at 2.5 years was 73%(range 34% to 95%).Excellent functional outcome was noted in 22(64.7%), moderate in 2(5.9%),good in 7(20.6%), fair in 1(2.9%) and poor in 1(2.5%). No significant difference was noted when  functional outcome was compared for gender,type of tumour,stage of tumor,location of tumor, side of tumor and type of stem fixation (P>0.05).

Conclusion: Custom-built fixed hinge prosthesis for tumors around the knee yielded excellent functional results in majority of our patients. We found custom build fixed hinged endoprosthetic reconstruction safe and effective technique for limb salvage in cases of distal femur and proximal tibia tumors.


Chen XJ,Wang Z, Li J. A statistic analysis of 3409 cases of tumors and tumor-like lesions of bones and joints (Chin). Zhongguo Gu Zhong Liu Gu Bing 2010,9:189-195.

Rougraff BT, Simon MA, Kneisl JS, Greenberg DB, Mankin HJ. Limb salvagecompared with amputation for osteosarcoma of the distal end of the femur.A long-term oncological, functional, and quality-of-life study. J Bone Joint SurgAm 1994;76:649–56.

Kotz R, Dominkus M, Zettl T, Ritschl P, Windhager R, Gadner H, et al. Advancesin bone tumour treatment in 30 years with respect to survival and limb salvage.A single institution experience. Int Orthop 2002;26:197–202.

Chen WM, Chen TH, Huang CK, Chiang CC, Lo WH.Treatment of malignant bone tumours by extracorporeally irradiated autograft-prosthetic composite arthroplasty.J Bone Joint Surg Br 2002;84-B:1156-61.

Fox EJ, Hau MA, Gebhardt MC, Hornicek F, Tomford WW,MankinHJ. Long-term followup of proximal femoral allografts.Clin Orthop 2002;397:106-13.

Gebhardt MC, Flugstad DI, Springfield DS, Mankin HJ. The use of bone allografts for limb salvage in high-grade extremity osteosarcoma. Clin Orthop 1991;270:181-96.

Kabukcuoglu Y, Grimer RJ, Tillman RM, Carter SR. Endoprosthetic replacement for primary malignant tumors of the proximal femur. Clin Orthop 1999;358:8-14.

Ahlmann ER, Menendez LR, Kermani C,Gotha H. Survivorship and clinical outcome of modular endoprosthetic reconstruction for neoplastic disease of the lower limb.J Bone Joint Surg Br 2006;88-B:790-795.

Aubriot J-H, Deburge A, Genet J-P. GUEPAR hinge knee prosthesis. Orthop Trau-matol Surg Res 2014;100:27-32.

Bhangu AA, Kramer MJ, Grimer RJ, O’Donnell RJ. Early distal femoral endoprosthetic survival: cemented stems versus the compress implant. Int Orthop. 2006;30:465-472.

Heisel C, Kinkel S, Bernd L, Ewerbeck V. Megaprostheses for the treatment of malignant bone tumours of the lower limbs. Int Orthop 2006;30:452–457.

Myers GJC, Abudu AT, Carter SR, Tillman RM, Grimer RJ. Endoprosthetic replacement of the distal femur for bone tumors.Long term results. J Bone Joint Surg Br 2007;89:521-526.

Ruggieri P,Mavrogenis AF, Pala E, Abdel-Mota'al M,Mercuri M. Long term results of fixed-hinge megaprostheses in limb salvage for malignancy. The Knee 2012;543-549.

Kotz R, Ritschl P, Trachtenbrodt J. A modular femur-tibia reconstruction system. Orthopedics 1986;9:1639-52.

Zeegen EN, Aponte-Tinao LA, Hornicek FJ, Gebhardt MC, Mankin HJ. Survivorship analysis of 141 modular metallic endoprostheses at early follow-up. Clin Orthop Relat Res 2004;420:239–50

Myers GJC, Abudu AT, Carter SR, Tillman RM, Grimer RJ. The long-term results of endoprosthetic replacement of the proximal tibia for bone tumors. J Bone Joint Surg 2007;89B:1632-1637.

Agarwal M, Anchan C, Shah M, Puri A, Pai S. Limb salvage surgery for osteosarcoma: effective low cost treatment. Clin Orthop 2007;459:62-91.

Enneking WF, Spanier SS, Goodman MA. A system for the surgical staging of musculoskeletal sarcoma. Clin Orthop Relat Res 1980;153:106-120.

Virkus WW, Marshall D, Enneking WF, Scarborough MT. The effect of contaminated surgical margins revisited. Clin Orthop Relat Res 2002;397:89–94.

Malawer MM, Sugarbaker PH.Musculoskeletal cancer surgery: treatment of sarcomas and allied diseases. Boston: Kluwer Academic Publishers, 2001:483-502.

Capanna R, Ruggieri P, Biagini R, Ferraro A, DeCristofaro R, McDonald D, et al. The effect of quadriceps excision on functional results after distal femoral resection and prosthetic replacement of bone tumors. Clin Orthop Relat Res 1991;267:186-196.

Capanna R, Morris HG, Campanacci D, Del Ben M, Campanacci M. Modular uncemented prosthetic reconstruction after resection of tumor of the distal femur. J Bone Joint Surg Br 1994;76B:178-86.

Enneking WF, Dunham W, Gebhardt MC, Malawer M, Pritchard DJ. A system for the functional evaluation of reconstructive procedures after surgical treatment of tumors of the musculoskeletal system. Clin Orthop 1993;286:241-246.

Henderson ER, O’Connor MI, Ruggieri P, Windhager R, Funovics PT, GibbonsCL, et al. Classification of failure of limb salvage after reconstructive surgeryfor bone tumours? A modified system including biological and expandable reconstructions. Bone Jt J 2014;96:1436-1440.

Gosheger G, Gebert C, Ahrens H, Streitbuerger A, Winkelmann W, Hardes J. Endoprosthetic reconstruction in 250 patients with sarcoma. Clin Orthop Relat Res 2006;450:164-171.

Natarajan MV, Sivaseelam A, Ayyappan S, Bose JC, Sampath Kumar M. Distal femoral tumours treated by resection and custom mega-prosthetic replacement. Int Orthop 2005;29:309-313.

Mavrogenis AF, Pala E, Angelini A, Ferraro A, Ruggieri P. Proximal tibial resections and reconstructions: clinical outcome of 225 patients. J Surg Oncol 2013;107:335-342.

Pala E, Trovarelli G,Calabro T, Angelini A, Abati CN, Ruggieri P.Survival of Modern Knee Tumor Megaprostheses: Failures,Functional Results, and a Comparative Statistical Analysis.Clin Orthop Relat Res 2015;473:891-899.

Pala E , Trovarelli G, Angelini A, Ruggieri P. Distal femur reconstruction with modular tumour prostheses: a single Institution analysis of implant survival comparing fixed versus rotating hinge knee prostheses. Int Orthop 2016;40(10):2171-2180.

Al-Zaben R, Alturk M, Alkhawaldah A, Al-Zaben A, Rahaymeh J. Limb Salvage Surgery for Bone Tumors Knee: The Oncological and Functional Outcome-King Hussein Medical Center Experience. Journal of US-China Medical Science 2015;12:111-119.

Mattei JC,Chapat B,Ferembach B, Le Nail LR, Crenn V, Bizzozero P, et al. Fixed-hinge cemented modular implants: An effective reconstruction technique following primary distal femoral bone tumor resection. A 136-case multicenter series. Orthop Traumatol Surg Res 2020:106(3):397-402.

Hardes J, Gebert C, Schwappach A, Ahrens H, Streitburger A,Winkelmann W, Gosheger G. Characteristics and outcome of infections associated with tumor endoprostheses. Arch Orthop Trauma Surg 2006;126:289-296.

Sharma S, Turcotte RE, Isler MH, Wong C. Experience with cemented large segment endoprostheses for tumors. Clin Orthop Relat Res 2007;459:54-59.

Turcotte RE. Endoprosthetic replacements for bone tumors: review of the most recent literature. Curr Opin Orthop 2007;18:572-578.

Henderson ER, Groundland JS, Pala E, Dennis JA, Wooten R, Cheong D,et al Failure mode classification for tumor endoprostheses: retrospective review of five institutions and a literature review. J Bone JointSurg Am 2011;93:418-429.

Lee SH, Oh JH, Lee KS, Yoo KH, Kim HS. Infection after prosthetic reconstruction in limb salvage surgery. Int Orthop 2002;26:179-184.




How to Cite

Hizbullah Riaz Ansari, Araib Ghega, Majid Zaheer, Ashfaq Ahmed, Rizwan Akram, Atiq uz Zaman, & Amer Aziz. (2021). Functional Outcome of Custom-Built Fixed Hinged Prosthesis for Tumors around the Knee. Journal of Pakistan Orthopaedic Association, 33(03), 95–100. Retrieved from
